Threaded fittings are forged pressure-containing components designed to connect small-bore piping systems through threaded joints. Manufactured according to ASME B16.11, these fittings provide a mechanical connection method where thread accuracy, pressure class selection, material compatibility, and inspection traceability directly affect sealing performance and long-term reliability.

Unlike welded fittings that require permanent joining, threaded fittings allow easier installation, maintenance, and replacement in piping systems where hot work restrictions, frequent modification, or limited installation space are important considerations. They are commonly used for instrumentation lines, utility piping, hydraulic systems, and auxiliary process piping with relatively small pipe sizes.

Octal Pipe Fittings supplies forged threaded fittings in carbon steel, stainless steel, and alloy steel materials, with common pressure classes including Class 2000, Class 3000, and Class 6000. Products are available in NPS 1/8 to NPS 4 sizes with thread configurations including NPT, BSPT, and BSPP according to project requirements.

For industrial procurement, the key evaluation points are not only fitting dimensions but also thread compatibility, forging quality, heat treatment control, material certificates, and inspection records before shipment.

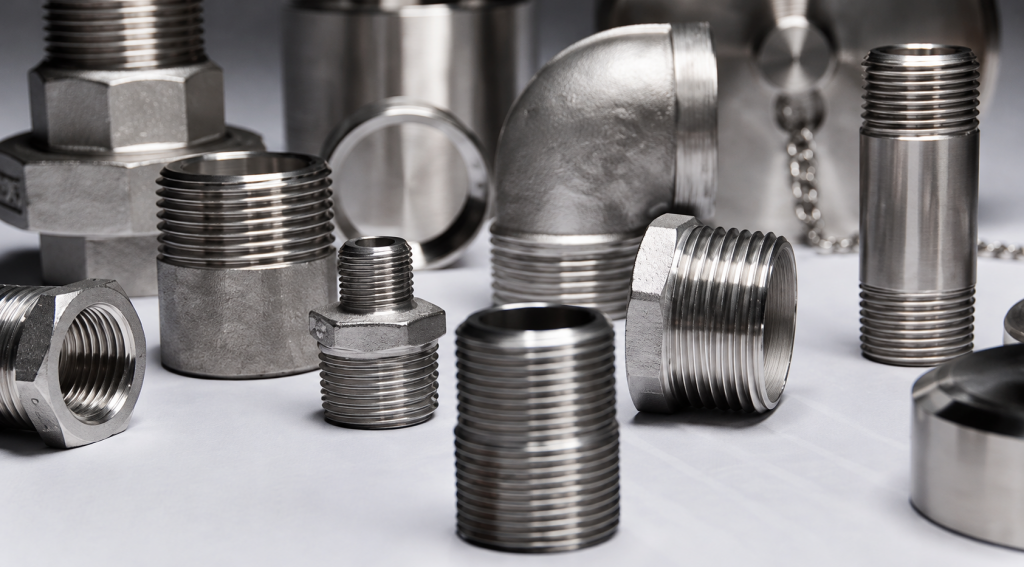

What Are Threaded Fittings?

Threaded fittings are forged fittings with machined threads at the connection ends, allowing pipes and fittings to be assembled by screwing the threaded sections together. The connection relies on accurate thread engagement and proper sealing methods to maintain pressure containment.

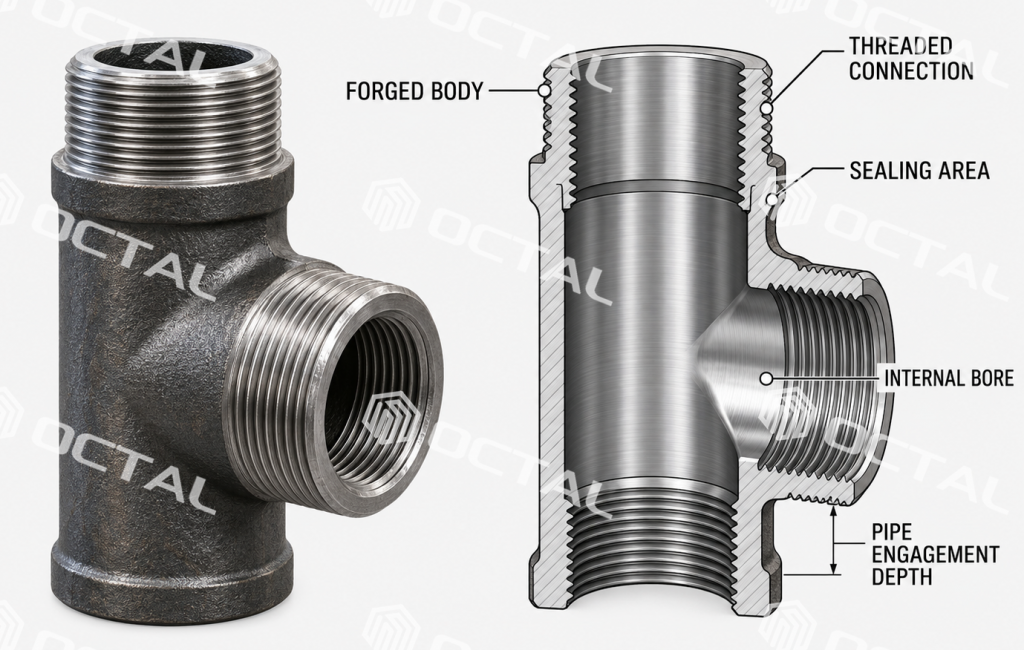

A typical threaded fitting consists of:

Component	Function
Forged body	Provides pressure resistance and mechanical strength
Threaded end	Creates the mechanical connection with pipe or fitting
Internal bore	Maintains flow passage through the fitting
Thread sealing area	Prevents leakage after assembly

The performance of a threaded connection depends on several factors:

Factor	Engineering Consideration
Thread standard	NPT, BSPT, or BSPP must match the mating component
Thread accuracy	Incorrect pitch or profile may cause leakage
Engagement length	Insufficient engagement reduces connection reliability
Material selection	Must match pressure, temperature, and corrosion conditions
Installation torque	Improper tightening may damage threads

For this reason, industrial buyers normally verify thread specifications, pressure class, material grade, and inspection documents before approving threaded fittings for projects.

ASME B16.11 Threaded Fittings Standards

Threaded fittings for industrial small-bore piping are generally manufactured in accordance with ASME B16.11, the standard that covers forged fittings with threaded and socket-welding ends. For buyers and engineers, this standard is important because it provides the dimensional basis, pressure-temperature classification framework, tolerance rules, marking requirements, and the general material reference system used to evaluate whether a fitting is suitable for a specified piping service.

For threaded fittings, ASME B16.11 is mainly applied to forged steel fittings used in compact piping connections where connection reliability depends not only on thread compatibility, but also on wall section, pressure class, machining accuracy, and material compliance. In practical purchasing work, this means a threaded fitting should never be selected only by nominal size. The applicable pressure class, thread form, material grade, and service condition must be reviewed together.

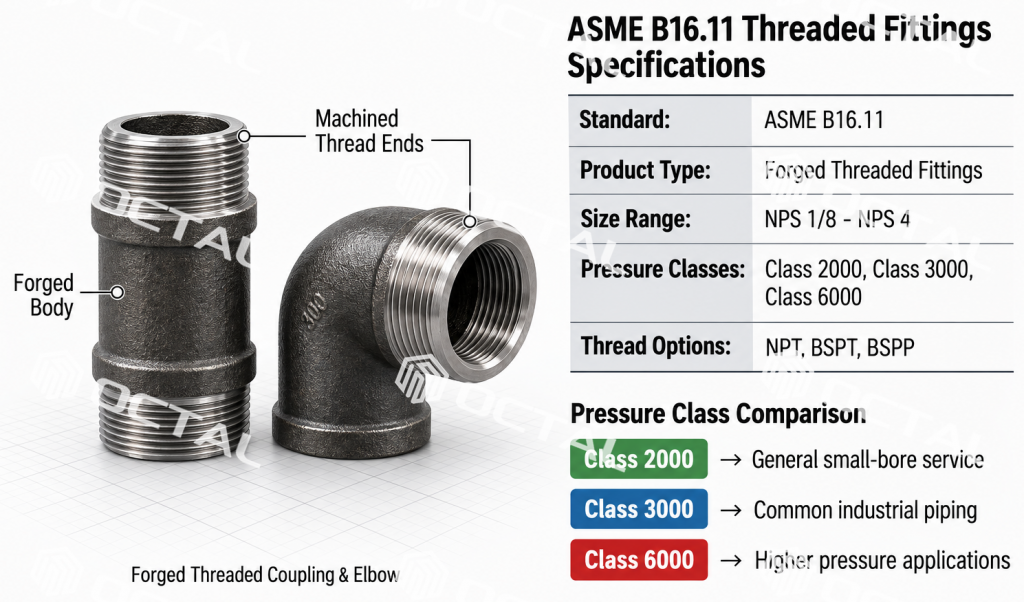

Quick Reference for ASME B16.11 Threaded Fittings

Item	Description
Applicable Standard	ASME B16.11
Product Scope	Forged threaded and socket-welding fittings
Threaded Fittings Type	Pressure-containing forged fittings with threaded ends
Typical Size Range	NPS 1/8 to NPS 4
Pressure Classes for Threaded Fittings	Class 2000, Class 3000, Class 6000
Main Evaluation Points	Dimensions, tolerances, marking, material requirements, pressure-temperature basis

Pressure Classes of Threaded Fittings

Connection Type	Pressure Class	Selection Focus
Threaded Fittings	Class 2000	General small-bore service with moderate pressure requirements
Threaded Fittings	Class 3000	Common industrial piping requiring higher pressure capacity
Threaded Fittings	Class 6000	More demanding service conditions with higher pressure requirements

The correct pressure class should be selected based on the actual operating conditions of the piping system, especially design pressure, operating temperature, material grade, and the relevant code basis used for the project. In other words, the class number is only part of the selection process. A Class 3000 or Class 6000 fitting is not chosen simply because it is “stronger,” but because its rating must align with the piping design conditions and the material performance allowed under the applicable specification.

Threaded Fittings Size, Material and Thread Options

Threaded fittings are selected according to connection size, thread configuration, material grade, and service requirements. The following table summarizes the common supply range.

Selection Item	Available Options
Size Range	NPS 1/8 – NPS 4
Thread Forms	NPT, BSPT, BSPP
Fitting Types	Elbow, Tee, Coupling, Union, Bushing, Plug, Cap
Carbon Steel Materials	ASTM A105, ASTM A350 LF2
Stainless Steel Materials	ASTM A182 F304, F316, F321
Alloy Steel Materials	ASTM A182 F11, F22
Manufacturing Method	Forging + Machining
Surface Condition	As forged / Machined / According to project requirement

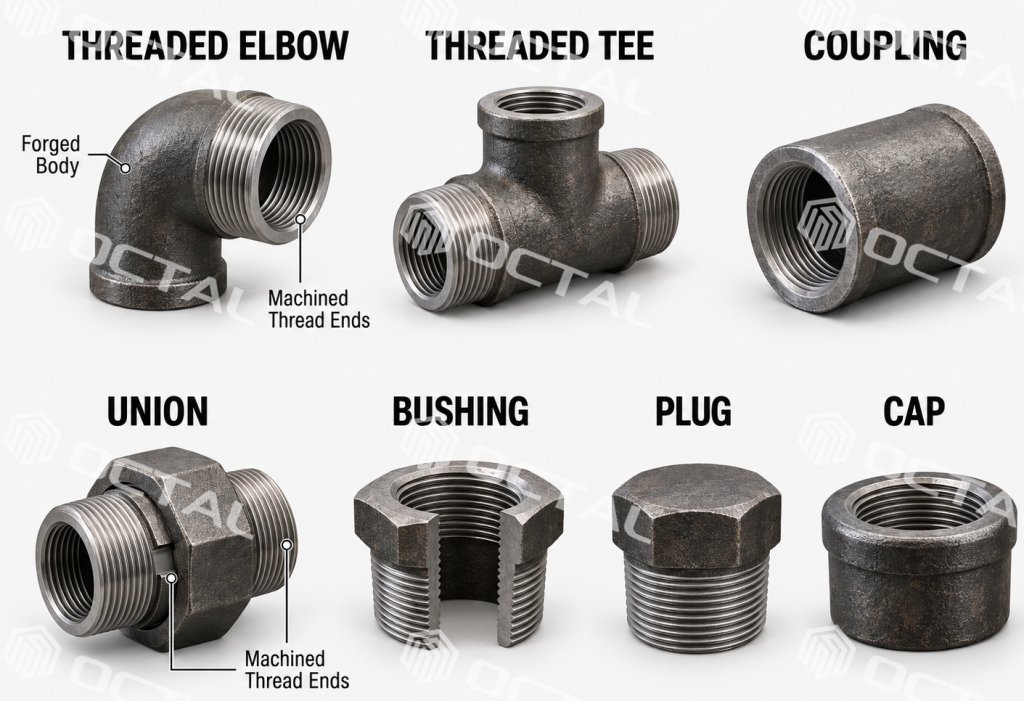

Types of Threaded Fittings

Threaded fittings are available in different configurations depending on piping layout and installation requirements.

Type	Function	Typical Application
Threaded Elbow	Changes pipeline direction	Instrument and utility piping routing
Threaded Tee	Creates branch connections	Small-bore distribution systems
Threaded Coupling	Connects two threaded pipes	Pipe extension and repair
Threaded Union	Allows quick disconnection	Maintenance sections
Threaded Bushing	Reduces pipe size	Size transition connections
Threaded Cap	Closes pipe ends	Temporary or permanent closure
Threaded Plug	Seals threaded openings	Drain and pressure ports
Threaded Cross	Four-way connection	Compact piping arrangements

The most common industrial threaded fittings include elbows, tees, couplings, and bushings because they provide flexibility for small diameter piping modifications.

Threaded Fittings vs Socket Weld Fittings

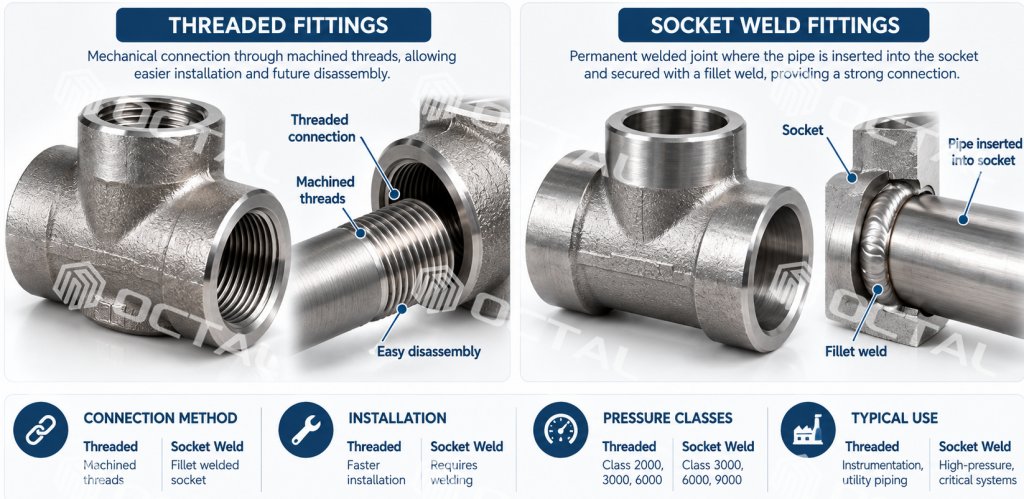

Threaded fittings and socket weld fittings are both covered by ASME B16.11 and are widely used for small-bore pressure piping systems. However, they use different connection methods and are selected according to installation conditions, maintenance requirements, pressure integrity, and project specifications.

Threaded fittings create a mechanical connection through machined threads, allowing easier installation and future disassembly. Socket weld fittings use a permanent welded joint where the pipe is inserted into the socket and secured with a fillet weld, providing a stronger connection for applications requiring higher leakage control.

The correct selection depends on the piping service, operating conditions, accessibility requirements, and welding limitations.

Comparison	Threaded Fittings	Socket Weld Fittings
Connection Method	Threaded connection	Fillet welded connection
Installation	Faster installation and easier replacement	Requires welding process and inspection
Pressure Classes	Class 2000, 3000, 6000	Class 3000, 6000, 9000
Maintenance	Easier for modification and replacement	More suitable for permanent installation
Typical Applications	Instrumentation, utility, small-bore piping	High-pressure and critical piping systems

Selection Considerations

When selecting between threaded fittings and socket weld fittings, engineers should evaluate the actual operating environment rather than only the fitting size.

Threaded fittings are commonly selected when:

• The piping system requires frequent maintenance or replacement;
• Hot work restrictions limit welding activities;
• The application involves small diameter utility or instrumentation lines;
• Fast installation is required.

Socket weld fittings are commonly selected when:

• Higher connection integrity is required;
• Leakage risk needs to be minimized;
• The piping system operates under more demanding pressure conditions;
• Qualified welding procedures and inspection are available.

For industrial procurement, the final selection should consider pressure class, material grade, service temperature, installation environment, and project inspection requirements. A suitable connection method helps reduce installation problems, leakage risks, and future maintenance costs.

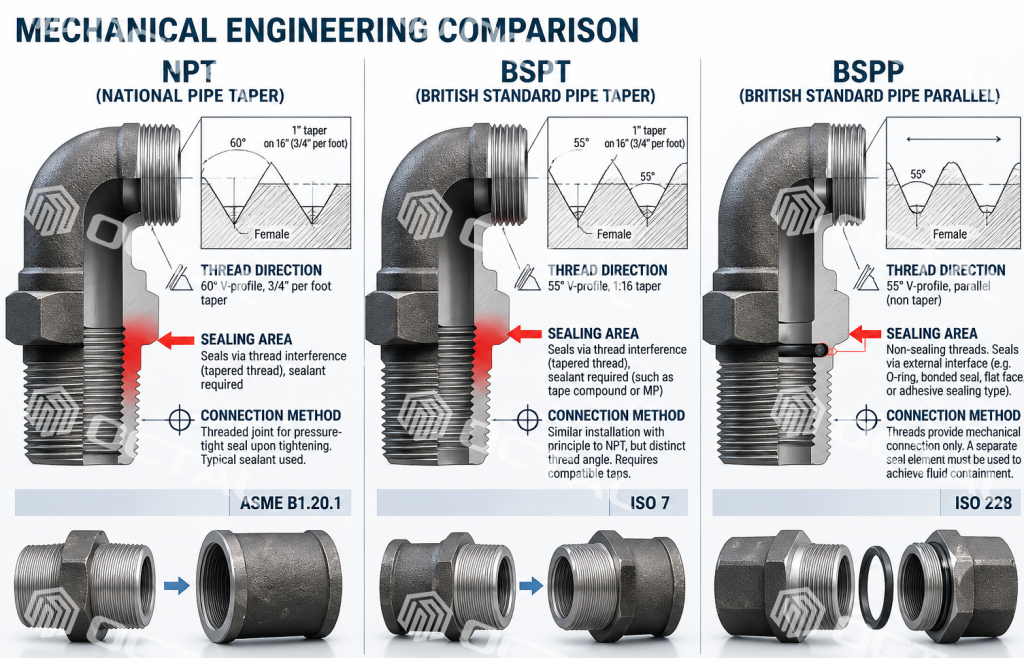

Thread Selection Guide for Threaded Fittings

The thread type is one of the key factors affecting installation compatibility and sealing performance. Before ordering threaded fittings, the thread standard of the fitting must match the connected pipe, valve, instrument, or equipment connection. Incorrect thread selection may result in leakage, difficult installation, or connection failure during commissioning.

Thread Type	Main Characteristics	Common Applications	Selection Consideration
NPT (National Pipe Thread)	Tapered thread with interference sealing between male and female threads	Oil & gas auxiliary piping, instrumentation, utility systems	Common in North American projects; thread size and gauge inspection should be confirmed before installation
BSPT (British Standard Pipe Taper)	Tapered thread similar to NPT but with different thread geometry	International industrial piping systems	Cannot be directly interchanged with NPT due to different thread profile and pitch
BSPP (British Standard Pipe Parallel)	Parallel thread requiring sealing through gasket, O-ring, or sealing face	Hydraulic systems, instrumentation connections	Requires compatible sealing design to achieve leak-free performance

For industrial projects, thread selection should be confirmed based on:

• Connection standard specified in drawings or piping documents;
• Thread designation and size;
• Pressure rating;
• Sealing method;
• Applicable service environment.

Threaded Fittings Material Selection

The material of threaded fittings should be selected according to operating temperature, pressure conditions, corrosion environment, and fluid characteristics. Octal supplies forged threaded fittings in carbon steel, stainless steel, and alloy steel grades commonly used in industrial piping systems.

Material Category	Common Grades	Typical Service Conditions	Main Characteristics
Carbon Steel Threaded Fittings	ASTM A105, ASTM A350 LF2	General industrial piping, utility lines, oil & gas auxiliary systems	Good mechanical strength, reliable machinability, widely used for pressure piping
Stainless Steel Threaded Fittings	ASTM A182 F304, F316, F321	Chemical processing, corrosive environments, clean utility systems	Better corrosion resistance and suitable for demanding environments
Alloy Steel Threaded Fittings	ASTM A182 F11, F22	High-temperature and high-pressure service, power generation systems	Improved temperature resistance and mechanical performance

Material Selection Considerations

Selecting the correct material for threaded fittings requires consideration of the complete operating environment, including temperature, pressure conditions, corrosion exposure, fluid characteristics, and project documentation requirements. Carbon steel, stainless steel, and alloy steel materials each provide different performance characteristics, so the selected grade must match the actual service conditions rather than being chosen only by availability or cost.

Operating temperature and pressure directly affect the allowable performance of the fitting material, while corrosive environments require suitable alloy selection to prevent premature degradation during service. Fluid compatibility is also important because certain process media may cause material deterioration or affect long-term connection reliability. In addition, industrial projects often require complete traceability documents, such as material certificates and inspection records, to support quality approval and commissioning procedures.

For threaded fittings, material selection should always be evaluated together with the required standard, pressure class, thread type, and application conditions. Even when the material grade is correct, an unsuitable thread configuration or pressure rating may still lead to installation difficulties, sealing problems, or connection failure during operation.

Manufacturing Process and Quality Control

Forged threaded fittings require controlled manufacturing processes to achieve reliable pressure performance, accurate dimensions, and consistent thread quality. The production process typically includes raw material verification → forging → heat treatment → machining → thread cutting → inspection → marking and packing.

During forging, the fitting body is formed to improve structural integrity and mechanical reliability. Heat treatment is then performed according to the material specification to achieve the required mechanical properties. After machining, critical dimensions such as fitting geometry, bore size, and thread profile are inspected to ensure proper connection compatibility.

Quality control focuses on three key areas: material traceability, dimensional accuracy, and thread reliability. Each fitting can be verified through heat number identification, chemical composition checks, mechanical testing, and material certificates such as MTC or EN10204 3.1 when required. Thread inspection using suitable gauges ensures that the thread profile, pitch, and engagement meet project requirements, reducing risks such as leakage, installation difficulty, and connection failure during service.

Applications of Threaded Fittings

Threaded fittings are widely used in small-bore piping systems where compact installation, connection flexibility, and convenient maintenance are required. They are commonly selected for applications such as instrumentation lines, utility piping, and auxiliary process systems.

In instrumentation and control systems, threaded fittings are used for connecting pressure gauges, valves, and measurement devices where space is limited and future adjustment or replacement may be required. Proper thread matching, sealing method, and material traceability are important to maintain connection reliability.

In utility and auxiliary piping systems, threaded fittings are commonly applied in air lines, water systems, drain connections, and other small process piping services. Their simple installation method makes them suitable for systems requiring efficient assembly and maintenance access.

For oil & gas auxiliary piping, threaded fittings are often used in instrument connections, sampling lines, and small-diameter service piping. Project requirements typically include confirmation of material grade, pressure class, thread specification, and inspection documentation before installation.

Why Choose Octal Threaded Fittings

Choosing a reliable threaded fittings supplier requires more than product availability. Buyers need consistent dimensions, confirmed material grades, accurate thread compatibility, and complete documentation to support project approval and installation.

Octal provides forged threaded fittings with controlled production processes and technical support for industrial piping applications.

Key Advantage	Value for Customers
Standard Compliance	Manufactured according to ASME B16.11 and applicable ASTM material specifications
Material Traceability	Heat numbers, material certificates, and inspection records available for quality verification
Thread Accuracy Control	Thread dimensions and compatibility checked to reduce leakage and installation issues
Flexible Supply Capability	Supports different materials, pressure classes, sizes, and project-specific requirements
Technical Support	Assists with material selection, thread specification confirmation, and document requirements

With a focus on specification accuracy, quality documentation, and project communication, Octal helps customers reduce procurement risks and ensure smoother installation during industrial piping projects.

FAQ

What standard are threaded fittings manufactured to?

Industrial forged threaded fittings are commonly manufactured according to ASME B16.11, which defines dimensions, pressure ratings, tolerances, and marking requirements.

What sizes are available for threaded fittings?

ASME B16.11 threaded fittings commonly cover sizes from NPS 1/8 to NPS 4. Actual availability depends on fitting type, material, and manufacturer capability.

What is the difference between NPT and BSP threads?

NPT is mainly used in North American systems, while BSPT and BSPP are common in international markets. They have different thread geometry and should not be mixed without confirmation.

How do I select the correct threaded fitting?

Selection should consider:

• Pipe size;
• Thread standard;
• Pressure class;
• Material grade;
• Temperature and service conditions.
